Specification

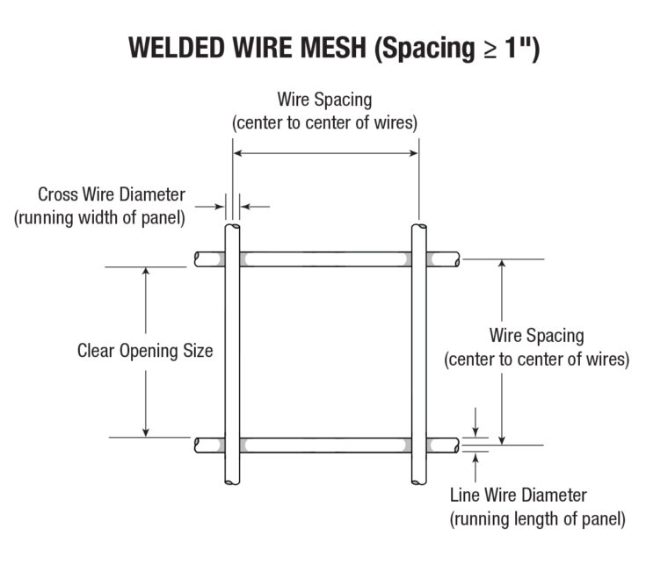

The Specifications of Stainless Steel Welded Wire Mesh | |||
Welded Wire Mesh | |||
Opening | Wire Diameter | ||
Inch | mm | BWG | mm |
1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
2"x1" | 50mmx25mm | 14#-8# | 2.0mm-4mm |
2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm |
3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm |
4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm |
4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm |
5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm |
6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
We present a selection of highly sought-after specifications for stainless steel welded wire mesh, catering to the specific requirements of our valued users. The opening sizes span from approximately 6" to 1", paired with diameter wires that are widely favored by our customers. These meticulously crafted specifications are available in sheet form.
Additionally, we offer specifications with opening sizes ranging from approximately 1" to 1/4", featuring diameter wires commonly embraced by the majority of our esteemed clientele. These specifications are thoughtfully manufactured in roll form, ensuring easy handling.Welded mesh is available in widths of 36", 48", and 60".
Specification List Of Welded Wire Mesh | ||
Opening | Wire Diameter(BWG) | |
In inch | In metric unit (mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 24#-22# |
3/8" x 3/8" | 10.6mm x 10.6mm | 22#-19# |
1/2" x 1/2" | 12.7mm x 12.7mm | 23#-16# |
5/8" x 5/8" | 16mm x 16mm | 21#-18# |
3/4" x 3/4" | 19.1mm x 19.1mm | 21#-16# |
1" x 1/2" | 25.4mm x 12.7mm | 21#-16# |
1-1/2" x 1-1/2" | 38mm x 38mm | 19#-14# |
1" x 2" | 25.4mm x 50.8mm | 16#-14# |
2" x 2" | 50.8mm x 50.8mm | 16#-12# |
Why Choose Our Welded Wire Mesh?
Superior Strength: Our welded wire mesh is constructed using high-quality steel wires, resulting in a robust and sturdy product that can withstand heavy loads and extreme conditions.
Precise Welding: Our state-of-the-art manufacturing processes ensure consistent and precise welding, making our mesh a reliable and durable choice for a variety of projects.
Wide Range of Sizes: We offer a variety of mesh sizes, from fine to large, to suit different applications. Whether you need small-scale reinforcement or large-scale fencing, we have you covered.
Corrosion Resistance: Our galvanized and PVC-coated options provide excellent protection against corrosion, making our welded wire mesh ideal for outdoor and humid environments.
Applications:
Construction: Strengthen concrete and masonry structures with our reinforcing welded mesh.
Fencing: Create secure and durable fencing for commercial, industrial, and residential properties.
Agriculture: Build animal enclosures, trellises, and crop protection structures with our welded mesh.
DIY Projects: From garden projects to home repairs, our welded wire mesh is a DIY enthusiast's best friend.
Customization:
We understand that every project is unique. Our team is ready to assist you in selecting the right mesh size, material, and finish to meet your specific requirements.
Sustainability:
We are committed to sustainable manufacturing practices. Our products are designed to be eco-friendly and have a minimal impact on the environment.
Join the welded wire mesh Difference:
With our welded wire mesh solutions, you're choosing a product that not only meets your needs but also exceeds industry standards for quality and durability. Trust us to provide you with the right materials for your projects, big or small.
Explore our welded wire mesh product range today, and experience the strength and versatility that has made us a preferred choice for countless builders, contractors, and DIY enthusiasts.
